Section 4.1 — Simple linear regression#
This notebook contains the code examples from Section 4.1 Simple linear regression from the No Bullshit Guide to Statistics.
Notebook setup#
# load Python modules
import os
import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
# Figures setup
plt.clf() # needed otherwise `sns.set_theme` doesn"t work
from plot_helpers import RCPARAMS
RCPARAMS.update({"figure.figsize": (5, 3)}) # good for screen
# RCPARAMS.update({"figure.figsize": (5, 1.6)}) # good for print
sns.set_theme(
context="paper",
style="whitegrid",
palette="colorblind",
rc=RCPARAMS,
)
# High-resolution please
%config InlineBackend.figure_format = "retina"
# Where to store figures
DESTDIR = "figures/lm/simple"
<Figure size 640x480 with 0 Axes>
from ministats import plot_residuals
from ministats import plot_residuals2
from ministats.utils import savefigure
# set random seed for repeatability
np.random.seed(42)
import warnings
# silence kurtosistest warning when using n < 20
warnings.filterwarnings("ignore", category=UserWarning)
\(\def\stderr#1{\mathbf{se}_{#1}}\) \(\def\stderrhat#1{\hat{\mathbf{se}}_{#1}}\) \(\newcommand{\Mean}{\textbf{Mean}}\) \(\newcommand{\Var}{\textbf{Var}}\) \(\newcommand{\Std}{\textbf{Std}}\) \(\newcommand{\Freq}{\textbf{Freq}}\) \(\newcommand{\RelFreq}{\textbf{RelFreq}}\) \(\newcommand{\DMeans}{\textbf{DMeans}}\) \(\newcommand{\Prop}{\textbf{Prop}}\) \(\newcommand{\DProps}{\textbf{DProps}}\)
\[
\newcommand{\CI}[1]{\textbf{CI}_{#1}}
\newcommand{\CIL}[1]{\textbf{L}_{#1}}
\newcommand{\CIU}[1]{\textbf{U}_{#1}}
\newcommand{\ci}[1]{\textbf{ci}_{#1}}
\newcommand{\cil}[1]{\textbf{l}_{#1}}
\newcommand{\ciu}[1]{\textbf{u}_{#1}}
\]
(this cell contains the macro definitions like \(\stderr{\overline{\mathbf{x}}}\), \(\stderrhat{}\), \(\Mean\), …)
Definitions#
Linear model#
from scipy.stats import norm
# Define the linear model function
def linear_model(x):
return 30 + 5 * x
# Define sigma for the normal distribution
sigma = 8
with sns.axes_style("ticks"):
fig, ax = plt.subplots(figsize=(5, 3))
# Plot the linear model
xs = np.linspace(0, 8, 200)
ys = linear_model(xs)
sns.lineplot(x=xs, y=ys, ax=ax, label=r"$\mu_Y(x) = \beta_0 + \beta_1x$", linewidth=2)
# Plot Gaussian distributions at specified x positions and add sigma lines
x_positions = range(1,8)
for x_pos in x_positions:
y_pos = linear_model(x_pos)
ys = np.linspace(y_pos-3.5*sigma, y_pos+3.5*sigma, 100)
pdf = 0.7*norm(loc=y_pos, scale=sigma).pdf(ys)
ax.fill_betweenx(ys, x_pos - pdf * sigma, x_pos, color="grey", alpha=0.5)
# Draw vertical sigma line and label it on the opposite side of the Gaussian shape
ax.plot([x_pos, x_pos], [y_pos, y_pos - sigma], "k", lw=1)
ax.text(x_pos + 0.06, y_pos - sigma / 2, r"$\sigma$", fontsize=12, va="center")
# y-intercept
ax.text(0 - 0.15, 30, r"$\beta_0$", fontsize=10, va="center", ha="right")
# Set up x-axis
ax.set_xlim([0, 8])
ax.set_xlabel("$x$")
ax.set_xticklabels([])
# Set up y-axis
ax.set_ylim([0, 100])
ax.set_ylabel("$y$")
ax.set_yticks(range(0,110,10))
ax.set_yticklabels([])
ax.legend(loc="upper left")
filename = os.path.join(DESTDIR, "linear_model_xy_with_gaussians.pdf")
savefigure(fig, filename)
Saved figure to figures/lm/simple/linear_model_xy_with_gaussians.pdf
Saved figure to figures/lm/simple/linear_model_xy_with_gaussians.png
Example: students score as a function of effort#
students = pd.read_csv("../datasets/students.csv")
students.head()
| student_ID | background | curriculum | effort | score | |
|---|---|---|---|---|---|
| 0 | 1 | arts | debate | 10.96 | 75.0 |
| 1 | 2 | science | lecture | 8.69 | 75.0 |
| 2 | 3 | arts | debate | 8.60 | 67.0 |
| 3 | 4 | arts | lecture | 7.92 | 70.3 |
| 4 | 5 | science | debate | 9.90 | 76.1 |
efforts = students["effort"]
scores = students["score"]

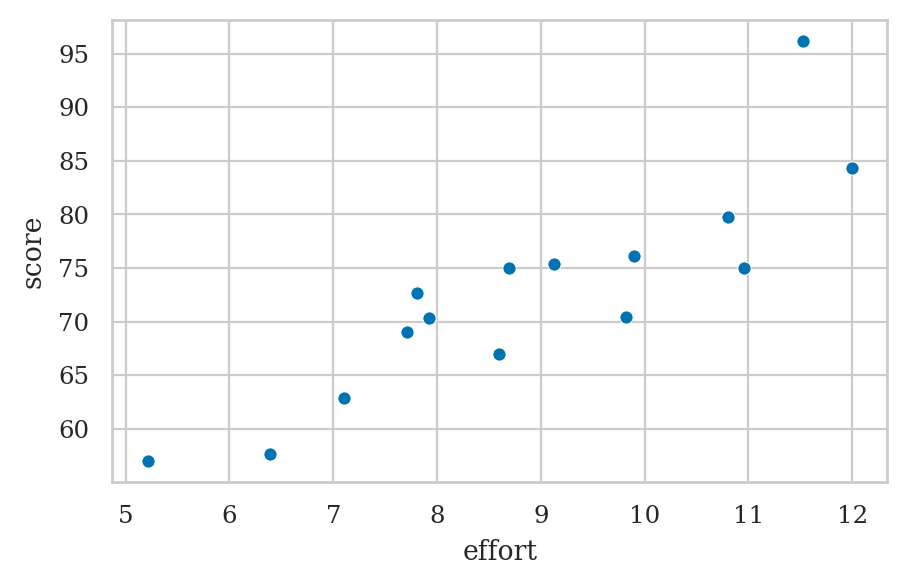

sns.scatterplot(x=efforts, y=scores)
filename = os.path.join(DESTDIR, "students_scores_vs_effort_scatterplot.pdf")
savefigure(plt.gcf(), filename)
Saved figure to figures/lm/simple/students_scores_vs_effort_scatterplot.pdf
Saved figure to figures/lm/simple/students_scores_vs_effort_scatterplot.png
Compute the correlation#
np.corrcoef(efforts, scores)[0,1]
# ALT. students[["effort","score"]].corr()
# np.corrcoef
0.8794375135614695
Parameter estimation using least squares#
meaneffort = efforts.mean()
meanscore = scores.mean()
num = np.sum( (efforts-meaneffort)*(scores-meanscore) )
denom = np.sum( (efforts - meaneffort)**2 )
b1 = num / denom
b1
4.504850344209071
b0 = meanscore - b1*meaneffort
b0
32.46580930159963
es = np.linspace(5, 12)
shats = b0 + b1*es

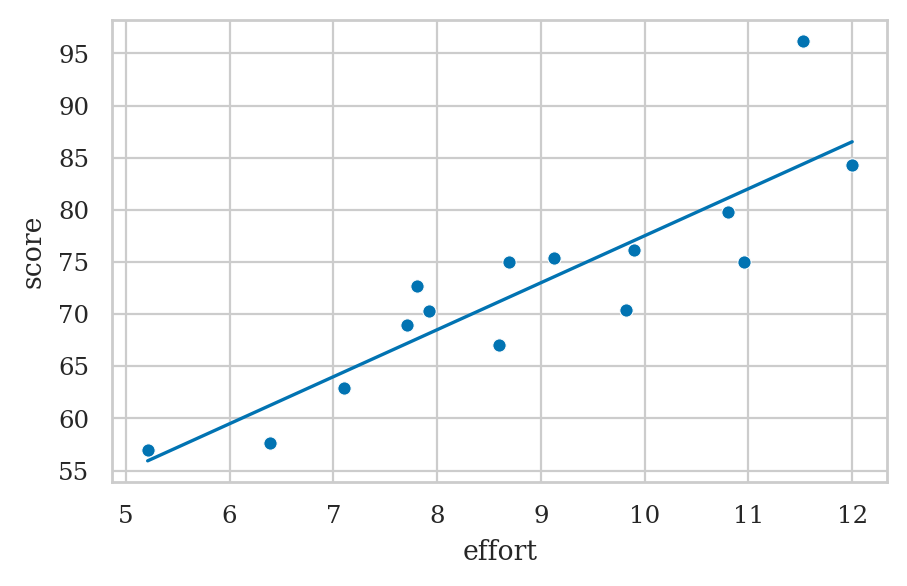

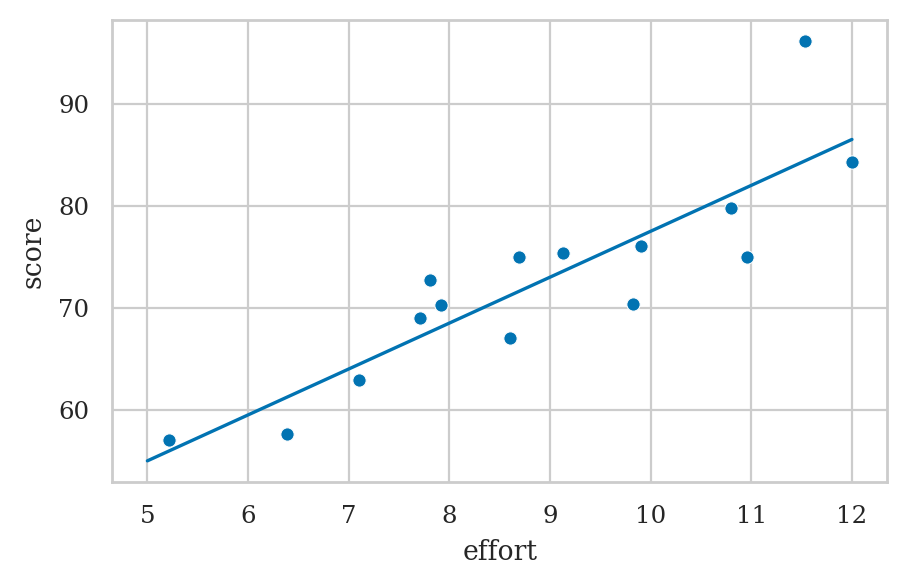

sns.lineplot(x=es, y=shats)
sns.scatterplot(x=efforts, y=scores)
filename = os.path.join(DESTDIR, "students_scores_vs_effort_with_line.pdf")
savefigure(plt.gcf(), filename)
Saved figure to figures/lm/simple/students_scores_vs_effort_with_line.pdf
Saved figure to figures/lm/simple/students_scores_vs_effort_with_line.png
# # ALT.

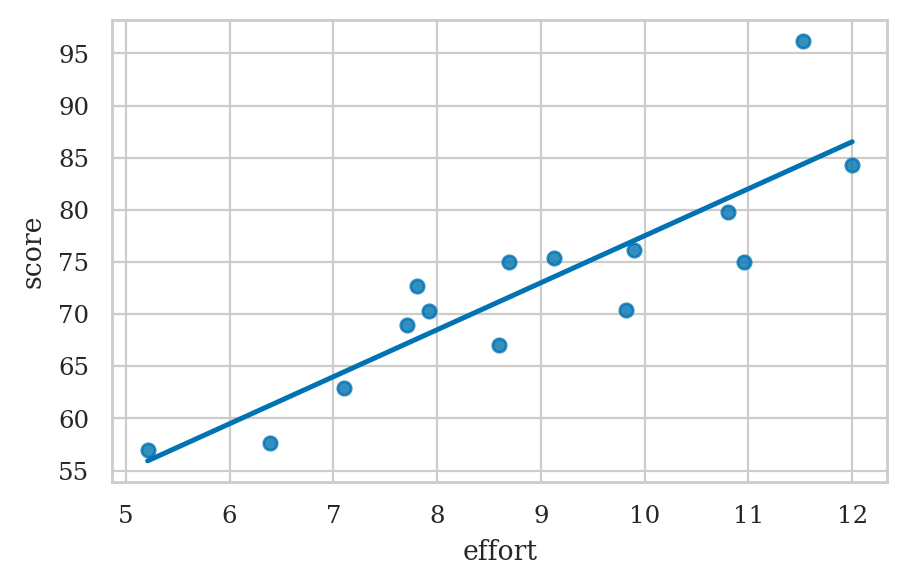

# sns.regplot(x=efforts, y=scores, ci=None);
Least squares optimization for the parameters#
How do we find the parameter estimates of the model?

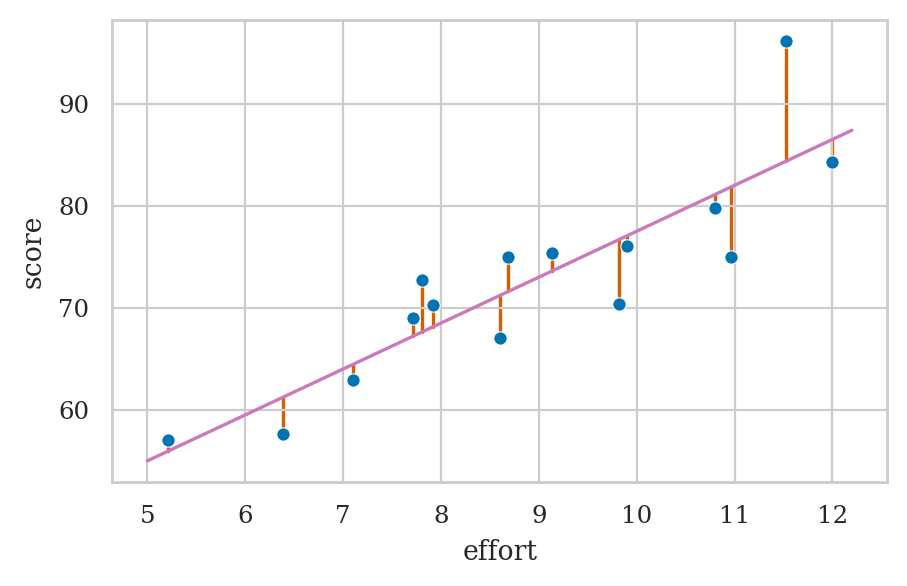

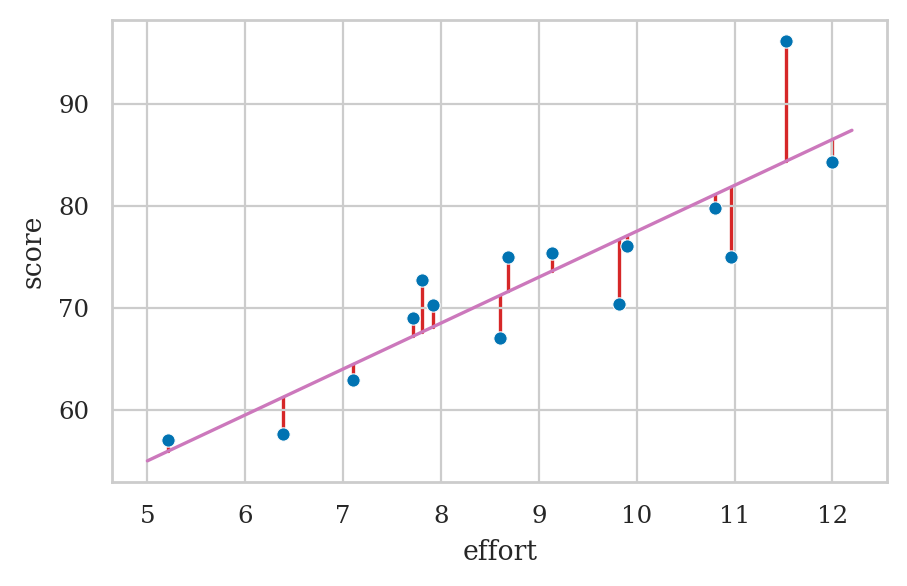

plot_residuals(efforts, scores, b0, b1)
sns.scatterplot(x=efforts, y=scores)
es = np.linspace(5, 12.2)
shats = b0 + b1*es
sns.lineplot(x=es, y=shats, color="C4");
filename = os.path.join(DESTDIR, "students_scores_with_residuals.pdf")
savefigure(plt.gcf(), filename)
Saved figure to figures/lm/simple/students_scores_with_residuals.pdf
Saved figure to figures/lm/simple/students_scores_with_residuals.png
ax = sns.scatterplot(x=efforts, y=scores, zorder=4)
es = np.linspace(5, 12.2)
shats = b0 + b1*es
sns.lineplot(x=es, y=shats, color="C4", zorder=5)

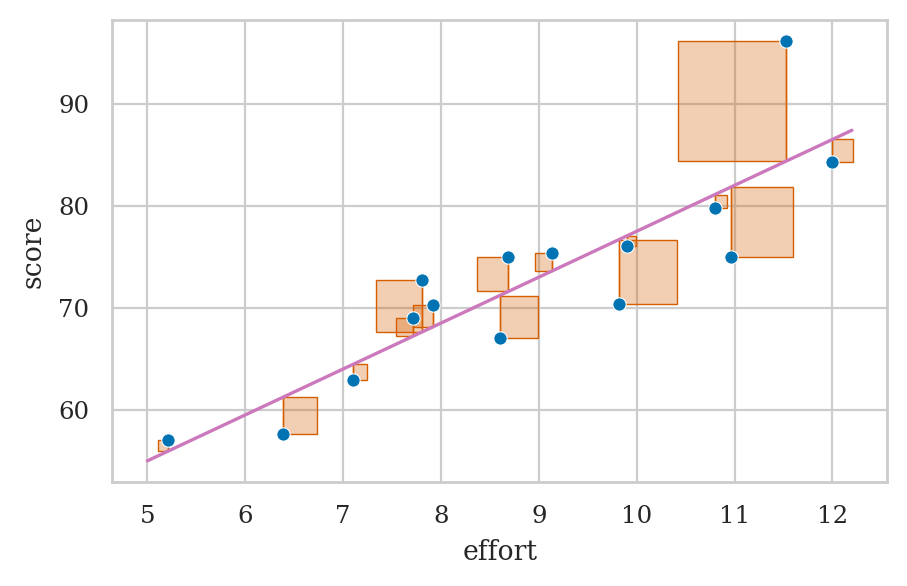

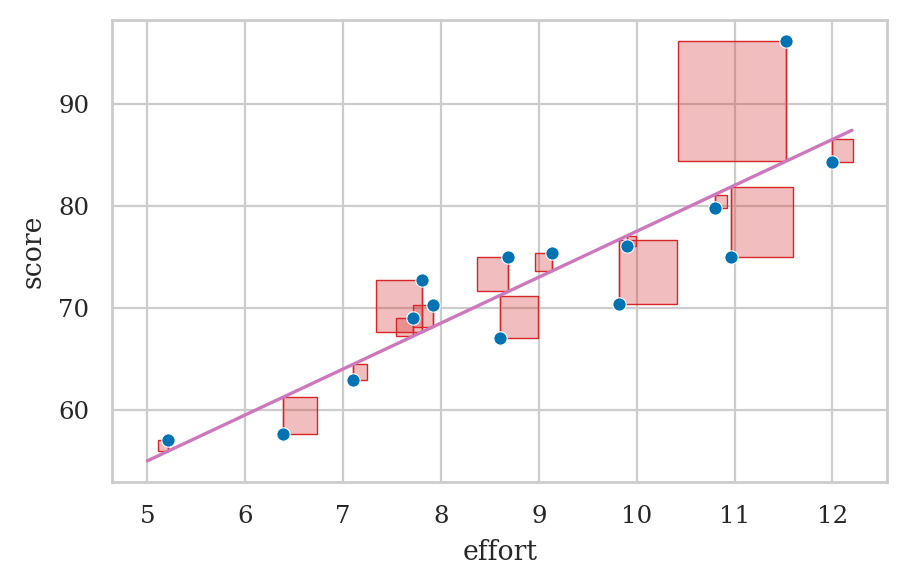

plot_residuals2(efforts, scores, b0, b1, ax=ax);
filename = os.path.join(DESTDIR, "students_scores_with_residuals_squared.pdf")
savefigure(plt.gcf(), filename)
Saved figure to figures/lm/simple/students_scores_with_residuals_squared.pdf
Saved figure to figures/lm/simple/students_scores_with_residuals_squared.png
Estimating the standard deviation parameter#
scorehats = b0 + b1*efforts
residuals = scores - scorehats
residuals[0:4]
0 -6.838969
1 3.387041
2 -4.207522
3 2.155776
dtype: float64
SSR = np.sum( residuals**2 )
n = len(students)
sigmahat = np.sqrt( SSR / (n-2) )
sigmahat
4.929598282660258
Model diagnostics#

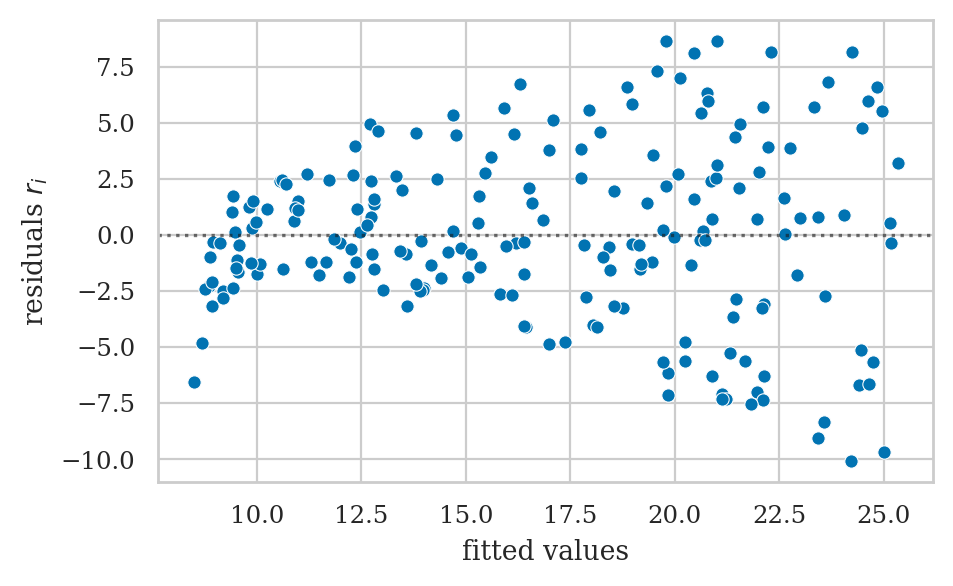

Residuals plots#
scorehats = b0 + b1*efforts
residuals = scores - scorehats

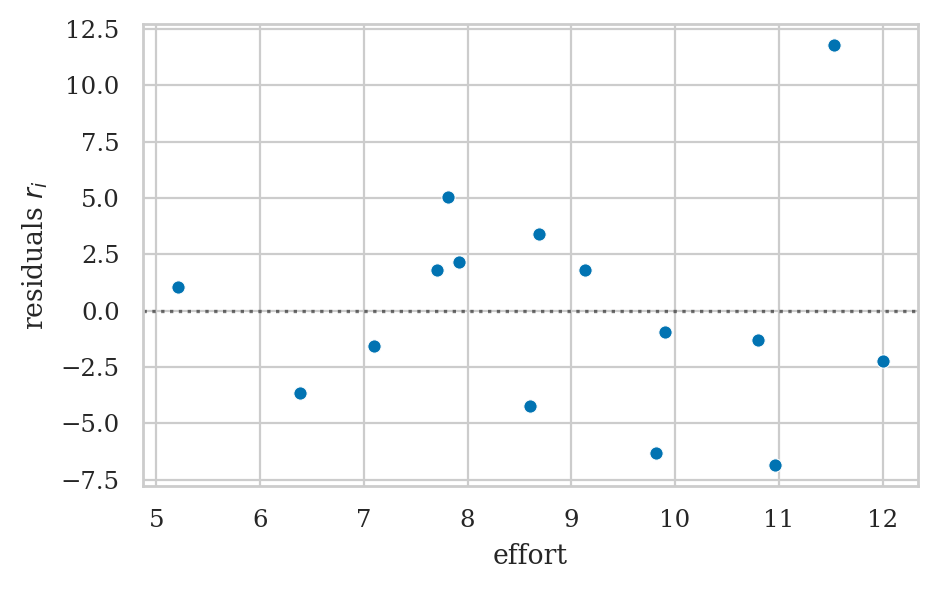

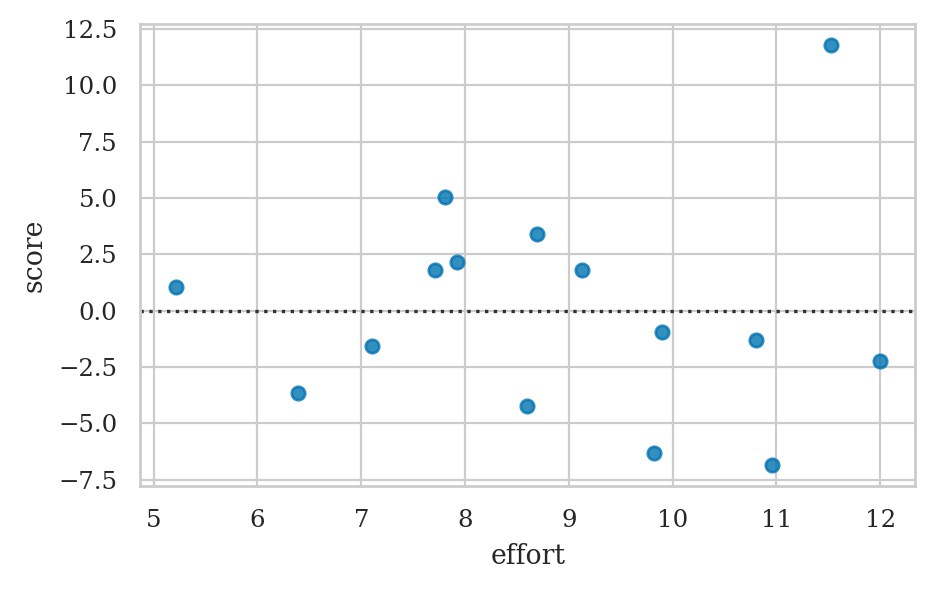

ax = sns.scatterplot(x=efforts, y=residuals, color="red")
ax.set_ylabel("residuals ($r_i = s_i - \\hat{s}_i$)")
ax.axhline(y=0, color="b", linestyle="dashed");
filename = os.path.join(DESTDIR, "residuals_plot_vs_effort.pdf")
savefigure(plt.gcf(), filename)
Saved figure to figures/lm/simple/residuals_plot_vs_effort.pdf
Saved figure to figures/lm/simple/residuals_plot_vs_effort.png

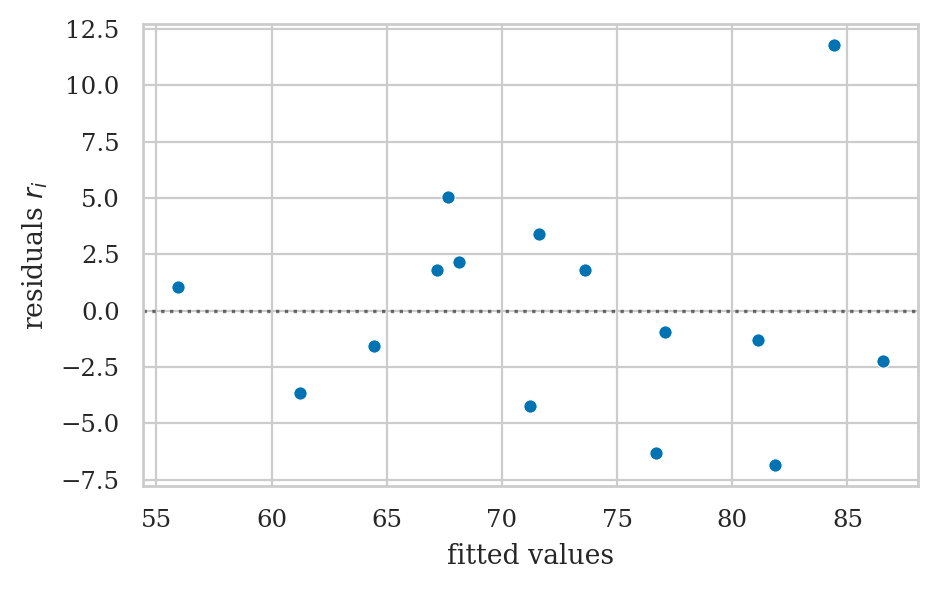

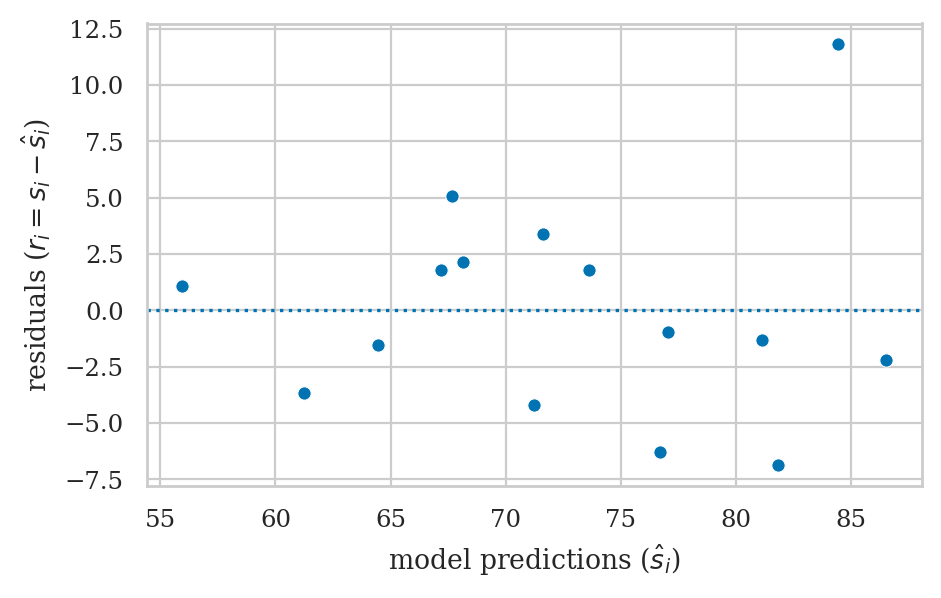

# # ALT.
# sns.residplot(data=students, x="effort", y="score", lowess=True, color="g");

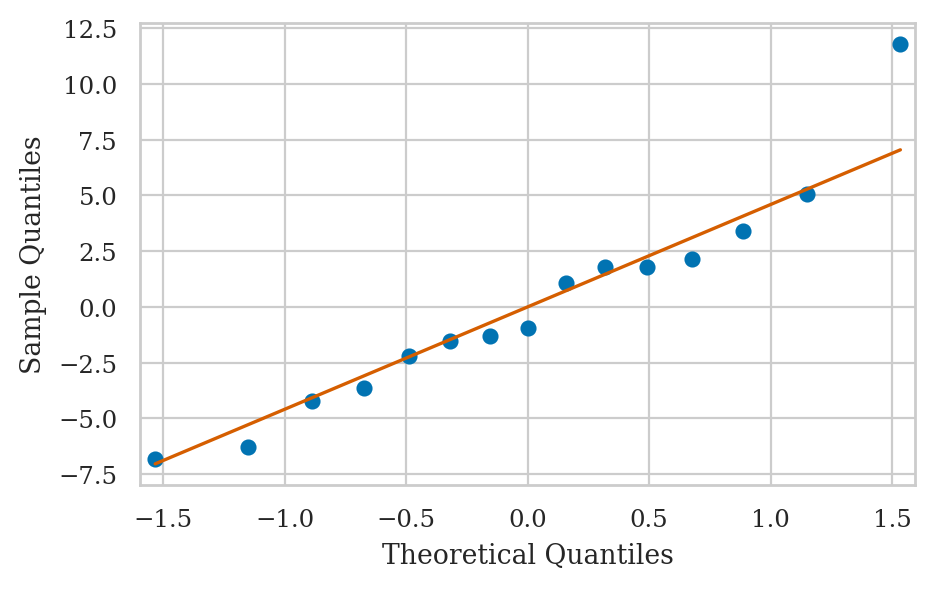

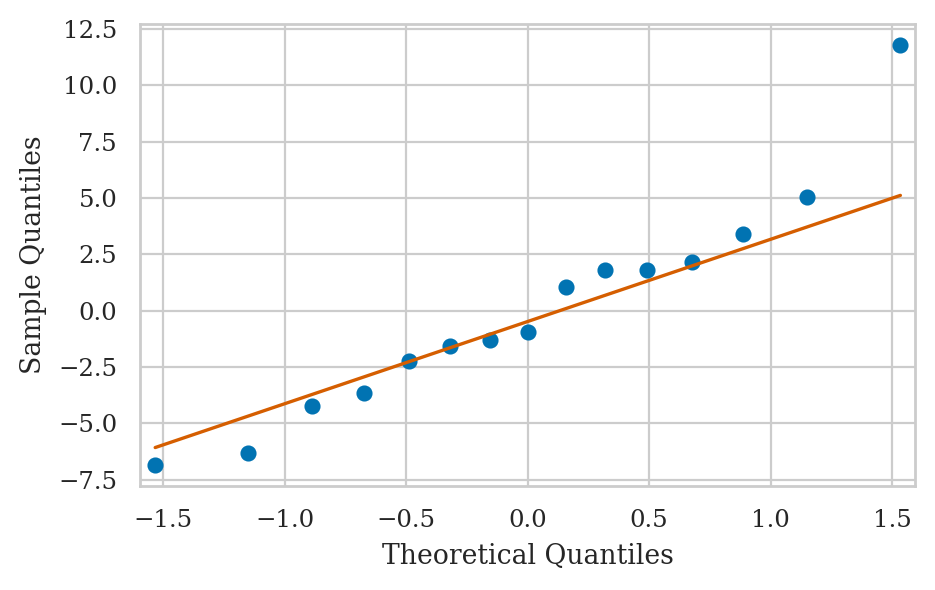

from statsmodels.graphics.api import qqplot
with plt.rc_context({"figure.figsize":(4,3)}):
qqplot(residuals, line="s")
plt.xlabel("theoretical quantiles (normal)")
plt.ylabel("residuals quantiles")
filename = os.path.join(DESTDIR, "residuals_plot_vs_effort_qqplot.pdf")
savefigure(plt.gcf(), filename)
Saved figure to figures/lm/simple/residuals_plot_vs_effort_qqplot.pdf
Saved figure to figures/lm/simple/residuals_plot_vs_effort_qqplot.png
Sum of squares quantities#
Sum of squared residuals#
SSR = np.sum( residuals**2 )
SSR
315.9122099692906
Explained sum of squares#
meanscore = scores.mean()
ESS = np.sum( (scorehats-meanscore)**2 )
ESS
1078.2917900307098
Total sum of squares#
TSS = np.sum( (scores - meanscore)**2 )
TSS
1394.2040000000002
SSR + ESS # == TSS
1394.2040000000004
Coefficient of determination \(R^2\)#
R2 = ESS / TSS
R2
0.7734103402591799
Using linear models to make predictions#
def predict(x, b0, b1):
yhat = b0 + b1*x
return yhat
Confidence interval for the mean#
TODO: add formulas
Confidence interval for observations#
TODO: add formulas
Example:predicting students’ scores#
Predict the score of a new student who invests 9 hours of effort per week.
neweffort = 9
scorehat = predict(neweffort, b0=32.5, b1=4.5)
scorehat
73.0
Confidence interval for the mean score#
#######################################################
newdev = (neweffort - efforts.mean())**2
sum_dev2 = np.sum((efforts - efforts.mean())**2)
se_meanscore = sigmahat*np.sqrt(1/n + newdev/sum_dev2)
se_meanscore
1.2744485881877106
from scipy.stats import t as tdist
alpha = 0.1
t_l, t_u = tdist(df=n-2).ppf([alpha/2, 1-alpha/2])
[scorehat + t_l*se_meanscore, scorehat + t_u*se_meanscore]
[70.74303643371016, 75.25696356628984]
from ministats import plot_lm_simple

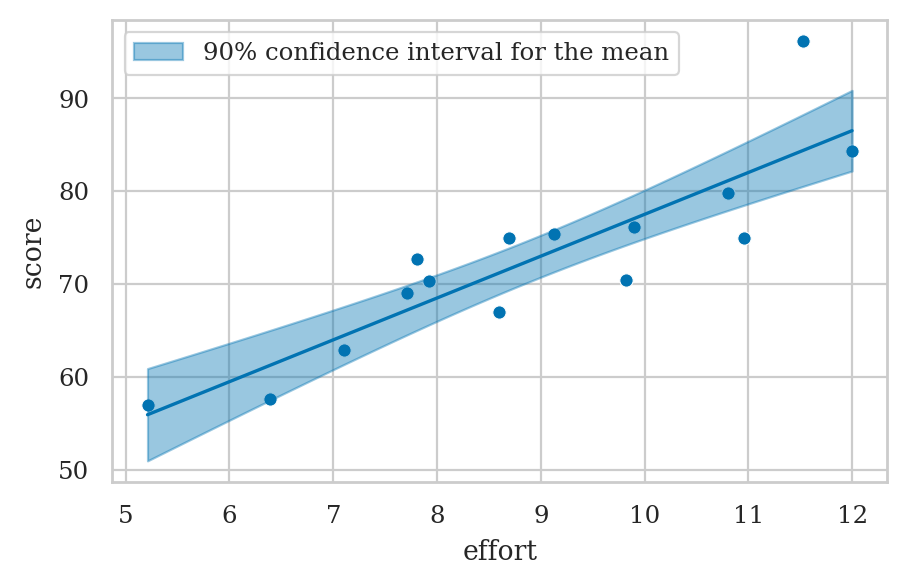

plot_lm_simple(efforts, scores, ci_mean=True)
filename = os.path.join(DESTDIR, "prediction_mean_score_vs_effort.pdf")
savefigure(plt.gcf(), filename)
Saved figure to figures/lm/simple/prediction_mean_score_vs_effort.pdf
Saved figure to figures/lm/simple/prediction_mean_score_vs_effort.png
Confidence interval for predicted scores#
se_score = sigmahat*np.sqrt(1 + 1/n + newdev/sum_dev2)
se_score
5.0916754052414435
alpha = 0.1
t_l, t_u = tdist(df=n-2).ppf([alpha/2, 1-alpha/2])
[scorehat + t_l*se_score, scorehat + t_u*se_score]
[63.98298198333331, 82.0170180166667]

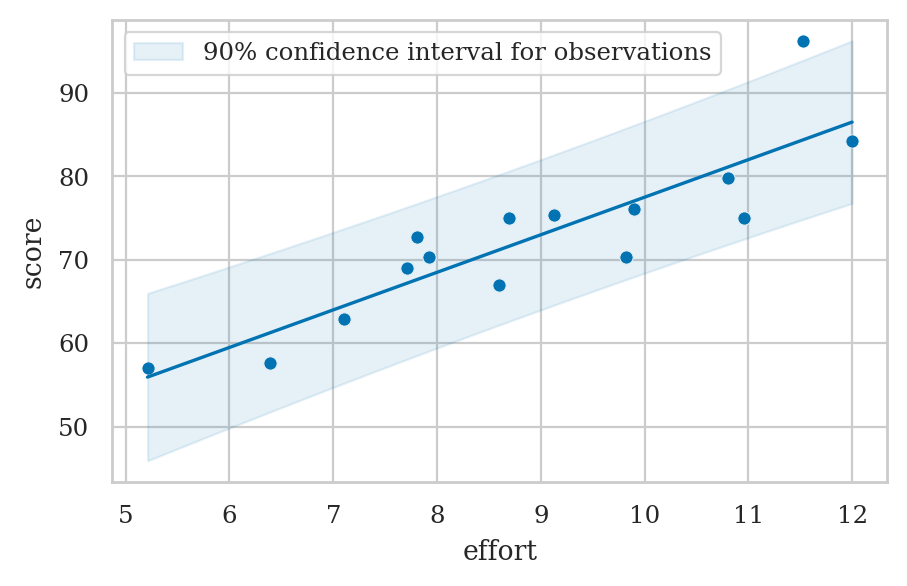

plot_lm_simple(efforts, scores, ci_obs=True)
filename = os.path.join(DESTDIR, "prediction_values_score_vs_effort.pdf")
savefigure(plt.gcf(), filename)
Saved figure to figures/lm/simple/prediction_values_score_vs_effort.pdf
Saved figure to figures/lm/simple/prediction_values_score_vs_effort.png
Prediction caveats#
efforts.min(), efforts.max()
(5.21, 12.0)
It’s not OK to extrapolate the validity of the model outside of the range of values where we have observed data.
For example, there is no reason to believe in the model’s predictions about an effort of 20 hours per week:
predict(20, b0=32.5, b1=4.5)
122.5
Indeed, the model predicts the grade will be above 100% which is impossible.
Explanations#
Strategies for fitting linear models#
Calculus We can obtain the analytical formulas …
Numerical optimization
Linear algebra
Software for fitting linear models#
scipystatsmodelsscikit-learn
Fitting linear models with statsmodels#
import statsmodels.formula.api as smf
lm1 = smf.ols("score ~ 1 + effort", data=students).fit()
type(lm1)
statsmodels.regression.linear_model.RegressionResultsWrapper
Estimated parameters for the model#
lm1.params
Intercept 32.465809
effort 4.504850
dtype: float64
type(lm1.params)
pandas.core.series.Series
We often want to extract the intercept and slope parameters for use in subsequent calculations.
b0 = lm1.params["Intercept"] # = lm1.params[0]
b1 = lm1.params["effort"] # = lm1.params[1]
b0, b1
(32.465809301599606, 4.504850344209074)
The estimate \(\widehat{\sigma}\) is obtained by taking the square root of the .scale attribute.
sigmahat = np.sqrt(lm1.scale)
sigmahat
4.929598282660258
Model fitted values#
lm1.fittedvalues # == scorehats
0 81.838969
1 71.612959
2 71.207522
3 68.144224
4 77.063828
5 81.118193
6 67.648690
7 73.595093
8 55.936080
9 67.198205
10 76.703440
11 84.406734
12 64.450247
13 61.251803
14 86.524013
dtype: float64
Residuals#
lm1.resid # == scores - scorehats
0 -6.838969
1 3.387041
2 -4.207522
3 2.155776
4 -0.963828
5 -1.318193
6 5.051310
7 1.804907
8 1.063920
9 1.801795
10 -6.303440
11 11.793266
12 -1.550247
13 -3.651803
14 -2.224013
dtype: float64
Sum-of-squared quantities#
# SSR # ESS # TSS # R2
lm1.ssr, lm1.ess, lm1.centered_tss, lm1.rsquared
(315.91220996929053,
1078.2917900307098,
1394.2040000000002,
0.7734103402591798)
Predictions#
Predict the score of a new student who invests 9 hours of effort per week.
lm1.predict({"effort":9})
0 73.009462
dtype: float64
pred = lm1.get_prediction({"effort":9})
pred.se_mean, pred.conf_int(alpha=0.1)
(array([1.27444859]), array([[70.75249883, 75.26642597]]))
pred.se_obs, pred.conf_int(obs=True, alpha=0.1)
(array([5.09167541]), array([[63.99244438, 82.02648042]]))
Model summary table#
lm1.summary()
| Dep. Variable: | score | R-squared: | 0.773 |
|---|---|---|---|
| Model: | OLS | Adj. R-squared: | 0.756 |
| Method: | Least Squares | F-statistic: | 44.37 |
| Date: | Fri, 03 May 2024 | Prob (F-statistic): | 1.56e-05 |
| Time: | 17:35:16 | Log-Likelihood: | -44.140 |
| No. Observations: | 15 | AIC: | 92.28 |
| Df Residuals: | 13 | BIC: | 93.70 |
| Df Model: | 1 | ||
| Covariance Type: | nonrobust |
| coef | std err | t | P>|t| | [0.025 | 0.975] | |
|---|---|---|---|---|---|---|
| Intercept | 32.4658 | 6.155 | 5.275 | 0.000 | 19.169 | 45.763 |
| effort | 4.5049 | 0.676 | 6.661 | 0.000 | 3.044 | 5.966 |
| Omnibus: | 4.062 | Durbin-Watson: | 2.667 |
|---|---|---|---|
| Prob(Omnibus): | 0.131 | Jarque-Bera (JB): | 1.777 |
| Skew: | 0.772 | Prob(JB): | 0.411 |
| Kurtosis: | 3.677 | Cond. No. | 44.5 |
Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
Alternative methods for fitting linear models (optional)#
Numerical optimization#
from scipy.optimize import minimize
def ssr(betas, xdata, ydata):
yhat = betas[0] + betas[1]*xdata
resid = ydata - yhat
return np.sum(resid**2)
optres = minimize(ssr, x0=[0,0], args=(efforts,scores))
beta0, beta1 = optres.x
beta0, beta1
(32.46580861926548, 4.504850415190829)
Linear algebra#
linear algebra solution using numpy
import numpy as np
# Prepare the design matrix
X = np.ndarray((n,2))
X[:,0] = 1
X[:,1] = efforts
X
array([[ 1. , 10.96],
[ 1. , 8.69],
[ 1. , 8.6 ],
[ 1. , 7.92],
[ 1. , 9.9 ],
[ 1. , 10.8 ],
[ 1. , 7.81],
[ 1. , 9.13],
[ 1. , 5.21],
[ 1. , 7.71],
[ 1. , 9.82],
[ 1. , 11.53],
[ 1. , 7.1 ],
[ 1. , 6.39],
[ 1. , 12. ]])
We obtain the least squares solution using the Moore–Penrose inverse formula:
\[
\vec{\beta} = (X^{\sf T} X)^{-1}X^{\sf T}\; \mathbf{y}
\]
lares = np.linalg.inv(X.T.dot(X)).dot(X.T).dot(scores)
beta0, beta1 = lares
beta0, beta1
(32.46580930159923, 4.504850344209087)
Fitting linear models using scipy#
The helper function scipy.stats.linregress …
from scipy.stats import linregress
scipyres = linregress(efforts, scores)
scipyres.intercept, scipyres.slope
(32.46580930159963, 4.504850344209071)
Fitting linear models using scikit-learn#
The class sklearn.linear_model.LinearRegression …
from sklearn.linear_model import LinearRegression
sklmodel = LinearRegression()
sklmodel.fit(efforts.values[:,np.newaxis], scores)
sklmodel.intercept_, sklmodel.coef_
(32.46580930159961, array([4.50485034]))
Using the low-level statsmodels API#
import statsmodels.api as sm
X = sm.add_constant(efforts)
y = scores
smres = sm.OLS(y,X).fit()
smres.params["const"], smres.params["effort"]
(32.465809301599606, 4.504850344209074)
Discussion#
Examples of non-linear relationships#

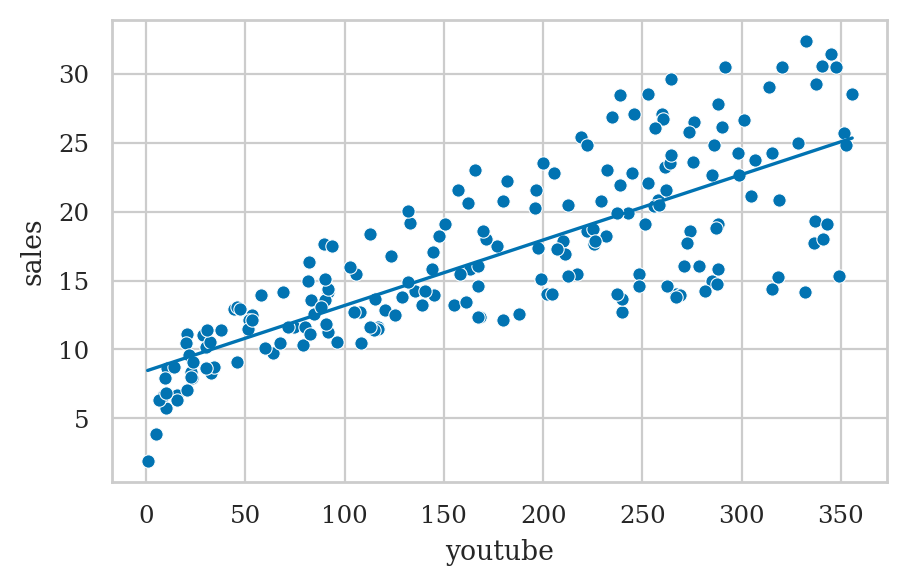

Hare are some examples of the different possible relationships between the effort and score variables.
Exercises#
Links#
(bonus) Formula for standard error of coefficients#
lm1.bse
Intercept 6.155051
effort 0.676276
dtype: float64
Formula using summations
\[
se(\beta_0) = \hat{\sigma} \cdot \sqrt{ \frac{1}{n} + \frac{\overline{x}^2}{\sum (x_i - \overline{x})^2} }
\qquad
se(\beta_1) = \hat{\sigma} \cdot \sqrt{\frac{1}{\sum (x_i - \overline{x})^2}}
\]
TODO: show derivation why these formulas are equiv. to matrix formulas below when p=1
sum_dev2 = np.sum((efforts - efforts.mean())**2)
se_Intercept = sigmahat * np.sqrt(1/n + efforts.mean()**2/sum_dev2)
se_b_effort = sigmahat/np.sqrt(sum_dev2)
se_Intercept, se_b_effort
(6.155051380977695, 0.6762756464968055)
Alternative formula using design matrix
\[
[se(\beta_0), se(\beta_1)]
=
\hat{\sigma} \cdot \text{diag}\left( \sqrt{ (X^T X)^{-1} } \right)
\]
where \(X\) is the design matrix.
# construct the design matrix for the model
X = sm.add_constant(students[["effort"]])
# calculate the diagonal of the inverse-covariance matrix
inv_covs = np.diag(np.linalg.inv(X.T.dot(X)))
np.sqrt(sigmahat**2 * inv_covs)
array([6.15505138, 0.67627565])
